A fruit crusher is a device used to quickly crush fruits into mud or fine particles. It usually consists of the following main parts:

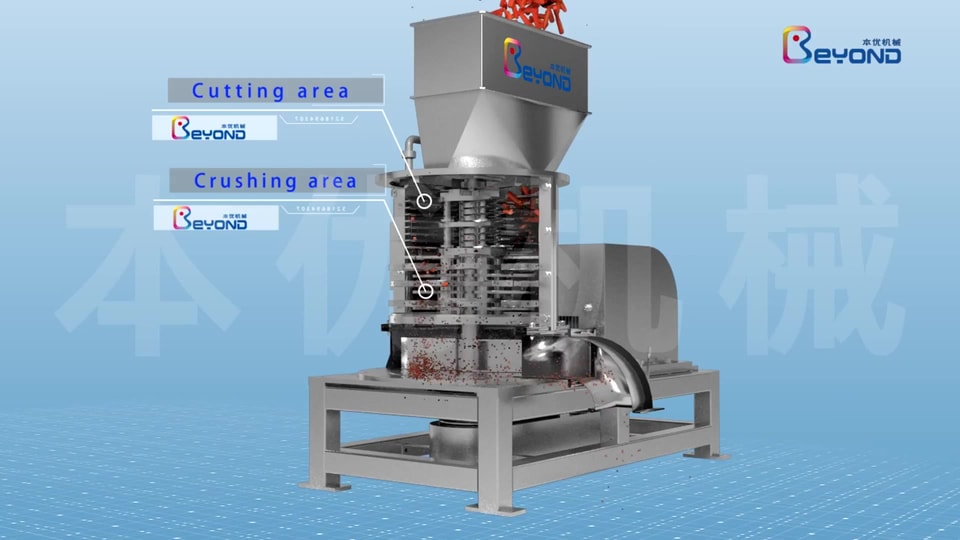

Crushing chamber: A space that contains fruits, usually a cylindrical or square container. After the fruit is placed in the crushing chamber, it will be crushed by the internal blade and rotating force.
Blade: The blade located inside the crushing chamber rotates and quickly cuts the fruit, breaking it into mud or fine particles. Blades are usually made of sturdy materials to ensure efficient and long-lasting operation.
Motor: A component that provides operating power for a fruit crusher. The motor drives the blade to rotate, enabling it to break the fruit.
Operation panel: Provides switch buttons and adjustment options, allowing users to control the start/stop of the fruit crusher and adjust parameters such as crushing speed through the operation panel.

Usage: The machine suitable for crushing different kinds of vegetables and fruits including apple,pear,peach,tomato,carrot and other long fiber products.

Characteristics: This machine is composed of cleanging tube,sight glass,crushing tooth plate,three section cutting knife,tensioning device,driving part,discharging plate etc. The food crusher machinery has some features such as light in weight, low energy consumption, good quality, long life and easy to clean.
Working principal: The principal axis is regularly driven to circumvolve by a couple straps on running wheels; so the knives on the principal axis with circumvolve swiftly. When the fruits drop down to the feeding hopper from the lifer, they will be crushed by the swift knives; the crushed fruits will fly through the filter net on the drum to the storage groove under the centrifugal effect.
The advantages:
1). The machine suitable for crushing different kinds of vegetables and fruits;
2). Hopper, crushing room, misreported is disserted, easy to dumpster gate;
3). The crushing room use noise arrester to lower noise;
4). Pulley with guards so it is safe and reliable;
5). Clean and insurance;
6). The motor has a protective device and power chain protection system;
7). The using life of the alloy blade is much longer than the ordinary one, moreover. It is very suitable for smashing high-densely plastic.

Technical parameter:





Model


Description

External dimension(mm)

(L*W*H)

Suggested capacity

Suggested power

capacity and power varies as to

different fruits

FHJ-10

All made of sus304 stainless steel

2050*1150*1650

10(T/H)

37KW

FHJ-15

2050*1150*1650

45(T/H)

45KW

FHJ-20


2050*1150*1650

55(T/H)

55KW


The usage steps of the fruit crusher are as follows:
Cut the fruit that needs to be crushed into a size suitable for placing in the crushing chamber.
Open the fruit crusher and place the fruit pieces into the crushing chamber. Ensure that the maximum capacity of the device is not exceeded.
Close the cover or locking device of the crushing chamber to ensure safe operation.
Start the motor of the fruit crusher by pressing the button on the operation panel.
The motor starts to drive the blades to rotate, quickly cutting and crushing the fruit into mud or fine pieces.
According to needs, the crushing speed or time can be adjusted to achieve the ideal crushing effect.
After the crushing is completed, turn off the power of the fruit crusher and open the lid or locking device of the crushing chamber to remove the crushed fruit slurry or fine crushing.


It should be noted that when using a fruit crusher, safety operating procedures should be followed to avoid hand contact with blades or other components that can cause injury. In addition, depending on the type of fruit and the purpose of use, it may be necessary to adjust the parameters of the crusher, such as speed and time, to achieve the desired crushing effect.
