Intelligent Modular Dairy Pilot Production Line – Core Technology & Performance Advantages2026-06-08 13:24:58Against the backdrop of
rapid iteration in the dairy industry, pilot production lines serve as a vital
link between laboratory R&D and commercial mass production, undertaking key
tasks including process verification, formula optimization and parameter
scale-up. With over two decades of expertise in food processing equipment,
Shanghai Beyond Machinery Co., Ltd. has developed intelligent, modular and
high-precision dairy pilot lines backed by profound technological accumulation
and innovation capabilities. Our cutting-edge technologies address prevailing
industry challenges. We deliver full-turnkey customized solutions for dairy
manufacturers, university research institutions and medical food enterprises,
acting as a powerful driver for the commercialization of dairy innovations.
I. Tailored for Pilot Production with Flexible
& Efficient Modular Design
Our dairy pilot lines
are engineered to meet core pilot production requirements. Adopting an
integrated modular structure with a production capacity ranging from 50 L/h to
500 L/h, they are well-suited for new product development, process validation
and small-batch trial production, striking an ideal balance between flexibility
and functional completeness.
1. Full-process
Production Flow, 1:1 Replication of Commercial Manufacturing
The pilot line fully
replicates the complete workflow of industrial dairy production, covering core
procedures: raw material inspection → milk clarification → standardization →
blending → homogenization → sterilization → fermentation → cooling → filling →
post-processing. It supports the pilot production of a wide range of dairy
products such as liquid milk, yogurt, fermented milk, milk powder and cheese.
The highly consistent data between pilot tests and mass production greatly
shortens the commissioning cycle for commercial production.
2. Modular Combination
for Independent and Linked Operation
Key standalone units
including UHT sterilizers, high-pressure homogenizers, intelligent fermentation
tanks and spray dryers are designed as individual modules. They can operate in
tandem to simulate the full production process, or be started and stopped independently
to facilitate targeted tests on single process parameters and small-scale
formula trials. This design effectively cuts down raw material consumption and
overall R&D costs.
3. Compact Layout for
Diverse Application Scenarios
Featuring a compact
hygienic design, the entire line fits well in laboratories, pilot workshops and
university teaching facilities with optimal space utilization and easy
operation. Complying with GMP food hygiene standards, all internal and external
surfaces of the equipment are finely polished with no dead corners for
effortless cleaning, eliminating cross-contamination risks.
II. Breakthrough Core Technologies to Build
Core Competitiveness
Upholding the philosophy
of "designing equipment based on production processes", Beyond
Machinery delivers standalone units with performance indicators exceeding
industrial benchmarks. Integrated with state-of-the-art technologies including
intelligent control, low-temperature sterilization, precision fermentation and
high-efficiency drying, our pilot lines achieve high precision, stability and
productivity throughout the production process.
1. HPP Ultra-high
Pressure Cold Sterilization for Freshness & Nutrition Retention
Conventional thermal
sterilization tends to damage heat-sensitive nutrients in dairy products such
as vitamins, active proteins and probiotics, impairing flavor and nutritional
value. Equipped with 570MPa HPP ultra-high pressure cold sterilization units,
our pilot lines achieve effective sterilization at ambient temperature without
heating. The retention rate of vitamins rises from 85% with traditional thermal
sterilization to 98%. The natural flavor and active ingredients of dairy
products are fully preserved, requiring no artificial preservatives and
enabling the development of premium healthy dairy products.
The equipment can run
continuously and stably for 16 hours for double shifts, far exceeding the
industrial standard of 8 hours. Its Overall Equipment Effectiveness (OEE) is
improved by 30%, while downtime for maintenance is reduced by 40%, ensuring
uninterrupted and stable pilot production.
2. Intelligent
Fermentation Control System for Consistent Batch Quality
Fermentation is a core
process for yogurt and fermented milk. Traditional equipment relies heavily on
manual experience, resulting in large batch-to-batch deviations of ±15% and
inconsistent product quality and flavor. Our intelligent bioreactors are integrated
with real-time monitoring systems for dissolved oxygen (DO), pH value,
temperature and pressure, along with automatic feeding and precise temperature
control modules to realize fully automatic closed-loop fermentation control.
This system limits
batch-to-batch variation in fermentation efficiency to ±5%. It accurately
replicates fermentation parameters to guarantee uniform quality across pilot
batches, providing reliable data support for commercial scale-up. It is
particularly ideal for high-precision scenarios such as probiotic fermentation
and medical food production.
3. High-efficiency
Homogenization & Heat Recovery for Energy Saving & Quality Improvement
- Two-stage
High-pressure Homogenizer: Adopting two-stage homogenization at 150–200 bar, it
refines milk fat globules to 0.2–2 μm. This significantly enhances the texture
and stability of dairy products, preventing fat floating and protein
sedimentation. It is perfectly applicable to the pilot production of premium
yogurt, cream and functional dairy products.

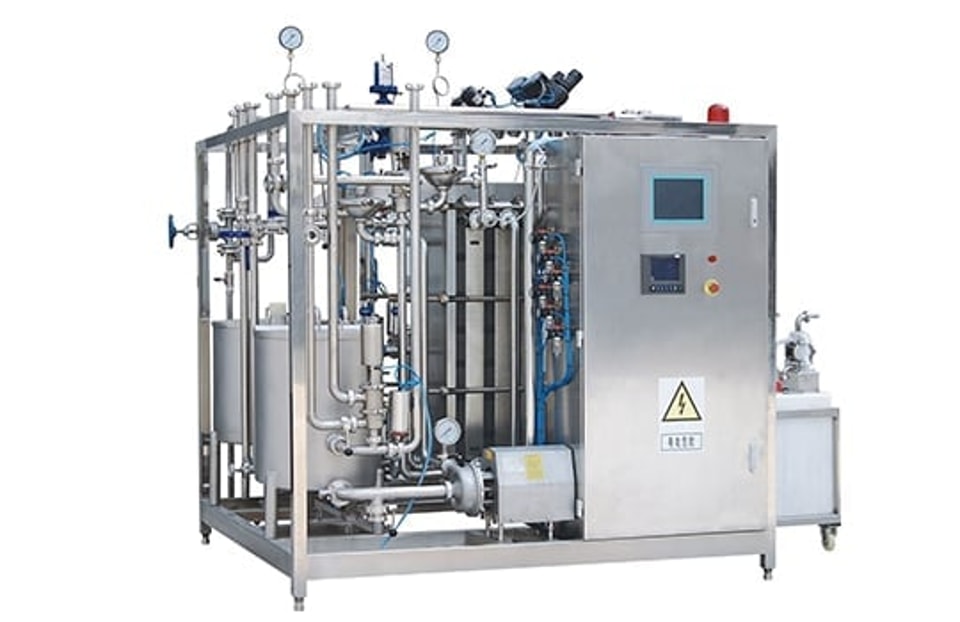

- UHT Instant
Sterilization & Waste Heat Recovery: Fitted with plate-type UHT instant
ultra-high temperature sterilizers, the system achieves sterilization at
135–150 °C within 3–5 seconds, minimizing nutrient loss while eliminating
harmful microorganisms. Matched with a high-efficiency heat recovery system
with a heat recovery rate of over 90%, it drastically cuts energy consumption
and aligns with the concept of green production.
4. Intelligent Spray
Drying System for Precise Milk Powder Quality Control
For the pilot production
of dried dairy products such as milk powder and protein powder, our integrated
spray drying system combines drying tower and fluidized bed. Compared with
conventional single-tower dryers, it boosts thermal efficiency by 20% and reduces
energy consumption.
Equipped with
intelligent feeding control and precise temperature regulation, the system
controls the moisture content of finished milk powder within a tolerance of
±0.5%. It effectively solves common industry problems including caking, wall
adhesion and scorching. The produced milk powder features uniform particle
size, excellent solubility and stable color, fully meeting the strict quality
control requirements for pilot powder production.
5. Fully Automatic
CIP/SIP System for Assured Hygiene
The entire line is
equipped with fully automatic Clean-in-Place (CIP) and Sterilize-in-Place (SIP)
systems, which enable automatic cleaning, disinfection and sterilization of
internal pipelines, tanks and valves. Temperature, concentration and duration are
automatically regulated to ensure thorough cleaning and sterilization without
dead zones. It eliminates instability caused by manual operation, ensures dairy
safety and complies with food-grade hygiene regulations.
III. Dual-driven Intelligence &
Customization to Empower Customers End-to-end
1. Intelligent Central
Control for Data-driven Precise Management
The whole line is
equipped with a PLC intelligent central control system and high-definition
touch screens, supporting one-touch start/stop for all processes, real-time
parameter monitoring, automatic data recording and fault early warning.
Production parameters can be saved and retrieved for one-click replication of
mature formulas. Exportable data facilitates R&D record-keeping and product
traceability, realizing the transformation from experience-based operation to
data-driven management.
2. Full-process
Customization to Diverse Demands
Beyond Machinery boasts
a professional technical team of over 90 members led by doctors and masters,
holding more than 350 patents. We have participated in national key R&D
programs of the 14th Five-Year Plan, focusing on the integration of dairy process
R&D and equipment design. Based on customers’ product types, capacity
requirements, site conditions and budgets, we deliver full turnkey services
covering process package design, customized equipment manufacturing, assembly,
installation & commissioning, personnel training and after-sales
maintenance, ensuring the pilot line fully matches actual operational needs.
3. Efficient After-sales
Service for Comprehensive Support

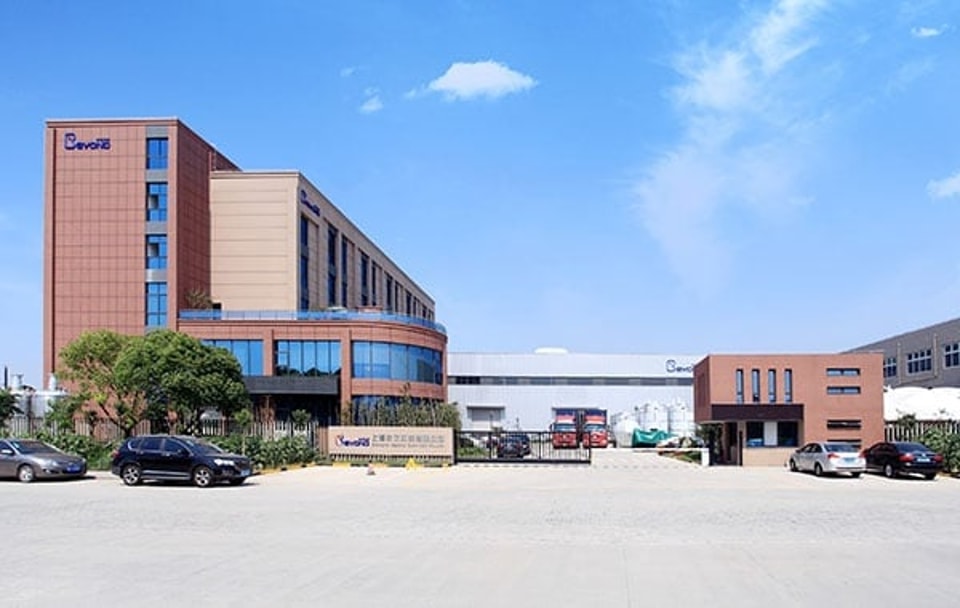

We adopt a dual-base
layout with the headquarters in Shanghai for R&D and sales, and a 100,000
m² manufacturing base in Xuzhou, Jiangsu. A highly responsive service network
has been established. Our field engineers travel an average of 150,000 kilometers
annually and provide 24/7 rapid response. We offer full lifecycle services
including equipment installation, commissioning, operational training, routine
maintenance and troubleshooting to guarantee stable operation of the pilot line
and support customers in efficient R&D and trial production.
IV. Core Values: Accelerate Innovation and
Reduce Trial-and-error Costs
Featuring flexible
modular design, advanced core technologies, intelligent precision control and
full-process customized services, our dairy pilot lines deliver remarkable
value to customers:
1. Lower R&D costs:
The low-capacity design reduces raw material consumption, and independent
modular operation avoids unnecessary energy waste, greatly cutting costs
incurred in new product R&D and trials.
2. Shorter R&D
cycles: The 1:1 replication of commercial production enables direct scale-up
from pilot data to mass production, shortening the commissioning cycle for new
products by 60% and helping clients seize market opportunities quickly.
3. Superior product
quality: Technologies including cold sterilization, precision fermentation and
high-efficiency drying support the development of differentiated dairy products
with high nutrition, stability and taste, strengthening market competitiveness.
4. Wide application
scope: Suitable for enterprise R&D, university teaching, institutional
pilot tests and medical food verification, one set of equipment fulfills
multiple demands with high cost performance.
Conclusion
Amid the innovation and
upgrading of the dairy industry, the intelligent dairy pilot lines developed by
Shanghai Beyond Machinery, centered on technological innovation and customer
demands, are not merely production equipment. They serve as an essential tool
for dairy innovation, a reliable bridge for process scale-up and a solid
guarantee for quality improvement. Going forward, Beyond Machinery will
continue to invest in technological R&D and optimize product performance.
With superior equipment and services, we will facilitate the high-quality
development of China’s dairy industry and jointly create a promising future for
the sector.
Beyond Machinery makes its debut at the 2026 China Dairy Technology Expo, empowering the industry for high-quality development2026-05-27 16:23:32Beyond Machinery makes its debut at the 2026 China Dairy Technology Expo, empowering the industry for high-quality development
Summer in Rongcheng, Empowered by Science and Technology Innovation. On May 26th, the 32nd Annual Meeting of the China Dairy Industry Association and the 2026 China (International) Dairy Technology Expo grandly kicked off at the Chengdu Century City New International Convention and Exhibition Center. As a highly authoritative annual industry event in the domestic dairy industry, the exhibition gathers global dairy elites, industry experts, and upstream and downstream leading enterprises to explore new paths for healthy dairy innovation, process iteration, and industrial upgrading, and jointly draw a new blueprint for the high-quality development of China's dairy industry.
Dairy Technology Exhibition Site
We have been deeply engaged in the field of food, beverage and dairy equipment for many years. With 130L multi-function conditioning machine melting pot, 50L biological fermentation single tank system, spray drying tower model, evaporator model, laboratory complete set of units and many core innovative equipment, Benyou Machinery has landed at the H7-3 booth. With hard core intelligent manufacturing technology and mature process solutions, we comprehensively display the full chain solutions suitable for modern dairy research, development and production.
By virtue of cutting-edge product design, exquisite manufacturing techniques, and technical solutions that cater to industry pain points, Benyou has attracted domestic and foreign dairy enterprise customers, R&D engineers, and industry experts to stop and observe for in-depth consultation. From the research and development of functional dairy products to standardized mass production, from process optimization to cost reduction and efficiency improvement, our entire range of exhibits accurately match the development trend of high-end, functional, and refined dairy industry in 2026, and have received high recognition from on-site guests.
Our excellent team provides professional and enthusiastic reception, one-on-one in-depth Q&A for different enterprises' product tracks, R&D needs, and production scales. We explain the core technical advantages, application scenarios, and adaptation solutions of each equipment in a simple and understandable manner, accurately analyze the technical difficulties of the entire dairy production process, and tailor efficient and worry free intelligent production solutions for customers.
Every exhibition is a sedimentation and refinement; Every communication is an iteration and growth.
In the future, Benyou will continue to increase investment in research and development innovation, promote technological iteration and process integration upgrading, empower dairy enterprises to improve quality and efficiency, innovate and break through with smarter equipment, more mature solutions, and better services, and work together with industry partners to achieve progress!
May 26th to May 28th
Chengdu Century City New International Convention and Exhibition Center
Booth H7-3
Beyond Machinery looks forward to your visit
Strong alliance enhances added value of the industrial chain - Technical analysis of the first phase fruit processing production line in Xiuwen Kiwi Industrial Park assisted by Shanghai Beyond Machine2026-05-22 11:47:31In 2017, it was a crucial year for China's deep processing of agricultural products to transition from primary circulation to high value-added processing. Guizhou Xiuwen kiwifruit, known as the "king of fruits" and "king of vitamin C", has ushered in an important moment of industrial upgrading. Xiuwen County is located in the hinterland of central Guizhou, and the main variety "Guichang" is carefully selected from local wild kiwifruit. The flesh is emerald green, sweet and sour, and has a unique flavor. The flesh is rich in vitamin C (103 to 139 milligrams per 100 grams) and selenium elements. However, bottlenecks in industrial development such as short freshness period of fresh fruits and uneven commodity fruit rates are becoming increasingly apparent. In response to this dilemma, the Xiuwen County Kiwi Science and Technology Park project has officially launched, with a planned area of 300 acres, including functional areas such as ingredient selection line workshops and controlled atmosphere warehouses. The controlled atmosphere warehouse will store 6240 tons of high-quality kiwifruit and introduce the AWETA intelligent photoelectric sorting and packaging line imported from the Netherlands.
Faced with the scale pressure of producing 60000 tons of fresh fruits annually, extending the industrial chain and strengthening deep processing have become inevitable choices to get rid of the dilemma of "increasing production without increasing income". Xiuwen County Agricultural Investment and Development Co., Ltd. has invested in the construction of a beverage production line with an annual output of 30000 tons of kiwifruit juice and a fruit wine (vinegar) production line, which is expected to create an annual sales revenue of 550 million yuan. The enterprise undertaking the entire line project of this strategic level deep processing project is Shanghai Beyond Machinery Co., Ltd., which enjoys a high reputation in the field of small fruit seed deep processing equipment.
2、 Technological breakthrough: Beyond Machinery customizes a deep processing line solution for Xiuwen kiwifruit
Shanghai Beyond Machinery Co., Ltd. was founded in 2005. After more than ten years of rooting and accumulation, it has grown into a leader in the field of small fruit deep processing equipment in China. Beyond adheres to the corporate creed of "Heaven rewards diligence, authentic rewards kindness, humane rewards sincerity, and professional rewards excellence". It integrates scientific research and development, process design, engineering general contracting, equipment manufacturing, installation and commissioning, and training. It specializes in turnkey projects for complete sets of fruit and vegetable deep processing production lines, especially in the field of processing small fruit varieties such as jujube, hawthorn, seabuckthorn, kiwi, apricot, plum, prickly pear, etc., with profound technical accumulation and rich project practical experience.
#（1） Independently designed full process production line to solve the three major problems of deep processing of small fruit seeds
As a small fruit variety, kiwifruit faces three core pain points in the deep processing process: the first is the yield issue. Taking prickly pear as an example, the traditional processing yield is only 55% to 60%. Through continuous technological research and development, Beyond has been able to increase the yield to around 70%. This 10 percentage point increase means a significant expansion of profit margins for agricultural product processing enterprises. The second issue is the utilization of by-products. The derivatization treatment of residual materials such as fruit pomace and skin was once a difficult problem in the processing of small fruit seeds, and this optimization has included it in the comprehensive consideration system for solving the entire case. The third issue is that kiwifruit, a type of berry fruit, is extremely sensitive to the structure of the flesh cell wall in terms of juice yield. The core technical challenge faced by this project is the low juice yield and difficulty in separating flesh fibers.
In the first phase of the Xiuwen Kiwi Industry Park project, the entire deep processing production line built by Beyond Machinery covers the entire process of raw material processing, cleaning and picking, crushing and pulping, enzymatic refining, clarification and filtration, concentration and sterilization, and blending and filling. From the perspective of the overall layout, a functional structure that is flexible and compatible with both fruit juice and fruit wine forms has been designed, which can meet the production capacity demand of 30000 tons of kiwi fruit juice per year and reserve sufficient production conditions for the subsequent fruit wine (vinegar) fermentation line.
#（2） Double channel pulping and scraper refining technology, maximizing the preservation of kiwifruit nutrition and flavor
Beyond has equipped the Xiuwen kiwi fruit deep processing production line with its independently developed and widely recognized dual channel pulping machine and scraper refining machine in the industry. The traditional fruit and vegetable pulping process often requires heating pretreatment to improve juice yield, but the heating process can seriously damage valuable thermosensitive nutrients such as vitamin C, vitamin E, and folate in kiwifruit. The Beyond dual channel pulping machine has achieved significant technological breakthroughs in this regard - there is no need to preheat kiwifruit before pulping, but a two-stage pulping process is adopted, which not only significantly improves the fineness of the pulp, but also further efficiently separates the fruit residue. This device is particularly suitable for the needs of de nucleating and pulping separation of berry fruits (kiwi, strawberry, etc.).
The refining process also uses our own scraper refining machine, which is used to automatically separate the fruit pulp that has been preliminarily crushed for a second time, meeting the demand for higher quality refining. The significant feature of this equipment is its advanced processing technology and design without any hygiene dead corners. Even when the machine is running at high speed, it can perform high-pressure cleaning and maintenance, which not only ensures the safety and hygiene standards of the production line, but also greatly reduces the difficulty of equipment maintenance and downtime for production enterprises. Through this innovative process, the vitamin C and various natural aromatic compounds of Xiuwen kiwifruit are maximally preserved, and the resulting juice products retain the unique sour and sweet taste and natural fruit aroma of the "Guichang" variety.
#（3） Flexible whole line design to achieve collaborative production capacity of juice and fruit wine
Another major technological highlight of the first phase deep processing production line in Xiuwen Kiwi Industrial Park is its highly flexible design. Due to the strong seasonality of the kiwifruit industry - the fresh fruit harvest period is concentrated in September to October each year, and a large number of high-quality small fruits outside the fresh food standard urgently need to be consumed, thus placing extremely high demands on the flexibility and comprehensive utilization rate of the production line. Beyond fully considered this in the overall design plan of the production line. Through modular equipment configuration and flexible switching of production process routes, the same production hardware platform can meet the production needs of two different forms of products, kiwifruit juice and kiwifruit wine (vinegar). The entire production line system is also equipped with a series of high-performance components such as cleaning and picking modules, fully automatic enzymatic hydrolysis reaction systems, high-speed centrifugal separation systems, efficient evaporation and concentration systems, and automated CIP cleaning systems, which meet the requirements of advanced, efficient, and intelligent integrated design.
It is worth mentioning that Xiuwen Kiwi Science and Technology Park has also reached a world-class level in terms of freshness preservation. The park has introduced controlled atmosphere preservation technology, which can accurately adjust the temperature, humidity, carbon dioxide, oxygen, and ethylene concentrations in the warehouse according to product needs, delay the metabolic process of kiwifruit, and enable the fruit to be effectively preserved for more than 8 months. This forms an efficient connection with our high-quality deep processing production line - the high level of fresh fruit preservation time provides ample production window for the deep processing production line, greatly improving the overall efficiency of the entire industry chain.
3、 Strong Alliance: Collaborative Resonance between the Rise of Xiuwen Kiwi Industry and Intelligent Equipment Manufacturing
The cooperation between Beyond Machinery and Xiuwen Kiwi is not simply a supply and demand relationship, but a profound industrial resonance. The Xiuwen County Government fully established Xiuwen County Agricultural Investment and Development Co., Ltd. as early as 2015, with a registered capital of 350 million yuan, to systematically promote the branding and industrialization process of the kiwifruit industry with a full industry chain thinking. As of 2017, the planting scale of kiwifruit in the county has reached 167000 mu, covering more than 6117 households in 113 administrative villages in 10 townships, and the industrialization foundation is becoming increasingly solid.
On the brand side, Xiuwen launched its flagship kiwi fruit brand "7 Not Enough" in 2017, positioning the product as a mid to high end fruit brand, with a "seven parts sweet and three parts sour" diamond taste, juicy jadeite flesh, and rich vitamin C, folate, tannin pectin, and various trace elements as selling points. In 2017 alone, "7 is not enough" achieved a sales revenue of 27.5 million yuan, doubling year-on-year, and successfully landed in core consumer markets such as North China and Chongqing. It even sparked a buying frenzy in the Xinfadi market in Beijing, challenging international kiwi fruit brands such as New Zealand's Jiapei.
At the same time, the shortcomings in the processing end of the entire industry urgently need to be filled, which is the stage for Shanghai Beyond Machinery to play its core value. As a high-tech enterprise in Shanghai with an annual output value of hundreds of millions of yuan in 2017, more than 300 employees, and 58 invention patents, Beyond has accumulated extensive and profound industry experience in the field of fluid food and fruit and vegetable deep processing equipment. It has provided full line solutions for leading domestic fruit and vegetable beverage enterprises such as Huiyuan Group and Nongfu Spring.
By combining world-class equipment manufacturing capabilities with the processing needs of China's unique small fruit varieties, Beyond has helped Xiuwen kiwifruit achieve a strategic transformation from "selling fresh fruits" to "selling fruit juice" and "selling fruit wine" in the deep processing stage. This not only promotes the annual comprehensive output value of Xiuwen kiwifruit industry to 1.7 billion yuan from a commercial perspective, but also plays an important demonstration role in poverty alleviation and income increase for the vast number of fruit farmers in Guizhou. In 2017, a total of 1363 low-income households in Xiuwen County relied on the kiwifruit industry to achieve an overall per capita disposable income of over 4800 yuan.
4、 Comprehensive Service Advantage: The Whole Chain Value from Equipment Research and Development to Market Expansion
Unlike most manufacturers on the market who only provide single machines or limited sets of equipment, Beyond Machinery provides a complete set of deeply integrated turnkey engineering services to Xiuwen Kiwi Industrial Park. Its service depth and breadth have already exceeded the industry standards of traditional equipment suppliers.
At the initial stage of project implementation, our professional technical team was deeply involved in the overall process design of the industrial park. Based on the harvesting characteristics and product structure planning scheme of Xiuwen kiwifruit, we meticulously coordinated the functional zoning, equipment layout, material flow design, and even energy consumption accounting of the entire factory in the workshop. During the equipment delivery and installation debugging phase, Beyond undertook all the engineering installation and debugging work from the core refining unit, enzymatic hydrolysis system, evaporation and concentration system to the utility pipeline engineering and workshop CIP cleaning system. At the same time, it provided systematic training to the operation and management personnel of the industrial park to ensure the smooth production and safe and stable operation of the production line.
What's even more rare is that Beyond has its own strain excipient company, which can assist customers in developing new products; At the same time, there is also a brand planning company with strategic cooperation, providing clients with guidance and marketing support on the market side - from front-end process research and development to back-end brand promotion, Beyond has the ability to empower the entire process. This "full industry chain" service system played a key role in the Xiuwen kiwifruit project: not only did it solve the equipment manufacturing problem of a production line with an annual output of 30000 tons of kiwifruit juice, but it also assisted the industrial park in opening up a complete value chain path from efficient processing and transformation of high-quality "expensive and long" kiwifruit variety resources to the promotion of finished products to the market.
Conclusion
In 2017, the smooth operation of the first phase deep processing production line in Xiuwen Kiwi Industrial Park marked a new stage of industrialization, branding, and high-value development for this national geographical indication agricultural product. As the core equipment supplier of the project, Shanghai Beyond Machinery has provided excellent product quality and rich added value to kiwi fruit deep processing products such as "7 Insufficient" with innovative processing technologies such as double channel pulping and scraper refining, as well as a flexible whole line design covering the entire process of cleaning and picking, enzymatic separation, concentration and sterilization. The technical hard power accumulated by Beyond in the field of deep processing of small fruit seeds for nearly 20 years, combined with the market soft power of the rise of Xiuwen kiwifruit brand, has formed a two-way support. It has not only established a replicable successful model for the coordinated development of equipment for deep processing of small fruit seeds and regional brands of agricultural products in China, but also injected strong momentum into the technological independence and industrial upgrading of China's fruit and vegetable deep processing industry.We will contact you within 24 hours
Email:master@shbenyou.com
